Ball Mill Spare Parts

Wear resistant Part Manufacturer – High Quality Ball Mill Spare Parts Supplier From China

Ball Mill Liner

Material: High Manganese Steel (Mn13, Mn18Cr2), High Chromium Cast Iron (Cr15, Cr20, Cr26), Alloy Steel (ZG40CrMo, ZG45Mn)
Hardness: 45-65 HRC (Rockwell hardness scale)
Weight: 5 kg – 500 kg (customized based on the mill size and design)
Applications: Cement Industry (for raw material and clinker grinding), Mining Industry (ore and mineral grinding), Power Plants (coal mills), Chemical Industry (chemical material grinding), Metallurgical Industry (metal extraction)
Customizable: Yes, liners can be customized in terms of size, material composition, and design to fit specific customer requirements.

Material: High Chromium Steel (Cr10, Cr15, Cr18), Forged Steel (B2, B3), Alloy Steel (ZGCr5Mo, ZGCr15)
Hardness: 55-65 HRC (Rockwell hardness scale)
Weight: 0.1 kg – 10 kg (varies based on size and specification)
Applications: Cement Industry (raw material and clinker grinding), Mining Industry (ore and mineral processing), Power Plants (coal grinding), Chemical Industry (grinding chemicals and pigments)
Customizable: Yes, we offer custom sizes and materials based on customer specifications and operational requirements.

Material: High Manganese Steel (Mn13, Mn18Cr2), High Chromium Cast Iron (Cr15, Cr20, Cr26), Alloy Steel (ZG40CrMo, ZG45Mn)
Hardness: 45-65 HRC (Rockwell hardness scale)
Weight: 5 kg – 500 kg (customized based on the mill size and design)
Applications: Cement Industry (for raw material and clinker grinding), Mining Industry (ore and mineral grinding), Power Plants (coal mills), Chemical Industry (chemical material grinding), Metallurgical Industry (metal extraction)
Customizable: Yes, liners can be customized in terms of size, material composition, and design to fit specific customer requirements.

Material: High Manganese Steel (Mn13, Mn18Cr2), Alloy Steel (ZG40CrMo, ZG45Mn), Cast Steel
Hardness: 50-60 HRC (Rockwell hardness scale)
Weight: 50 kg – 5000 kg (depending on mill size and design)
Applications: Cement Industry (supporting ball mill rotation), Mining Industry (for ore grinding mills), Power Plants (coal mill trunnions), Metallurgical Industry (ball mill trunnions for mineral processing)
Customizable: Yes, trunnions can be customized in size, material, and design to meet specific customer requirements and mill specifications

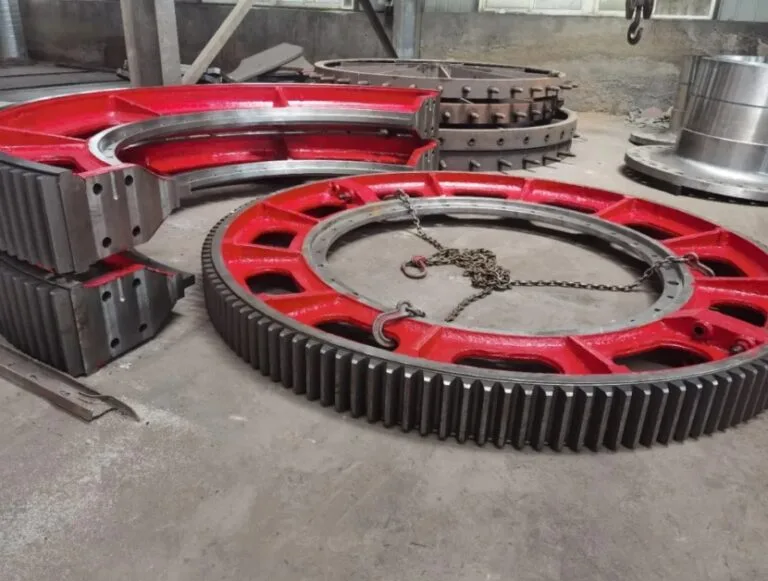

Material: High Carbon Steel (20CrMnTi, 40Cr, ZG45), Alloy Steel (ZG35, ZG35CrMo), Cast Steel
Hardness: Surface : 50-60 HRC (Rockwell hardness scale), Core: 30-40 HRC
Weight: Typically ranges from 500 kg to 30,000 kg
Diameter: typically ranging from 1m to 6m.
Tooth Profile: Available in different tooth profiles, such as helical, double helical, or straight tooth depending on the application and operational requirements.
Applications: Cement Industry (for rotation of grinding mills and kilns), Mining Industry (for ore and mineral grinding mills), Power Plants (used in coal mills and other large grinding equipment)
